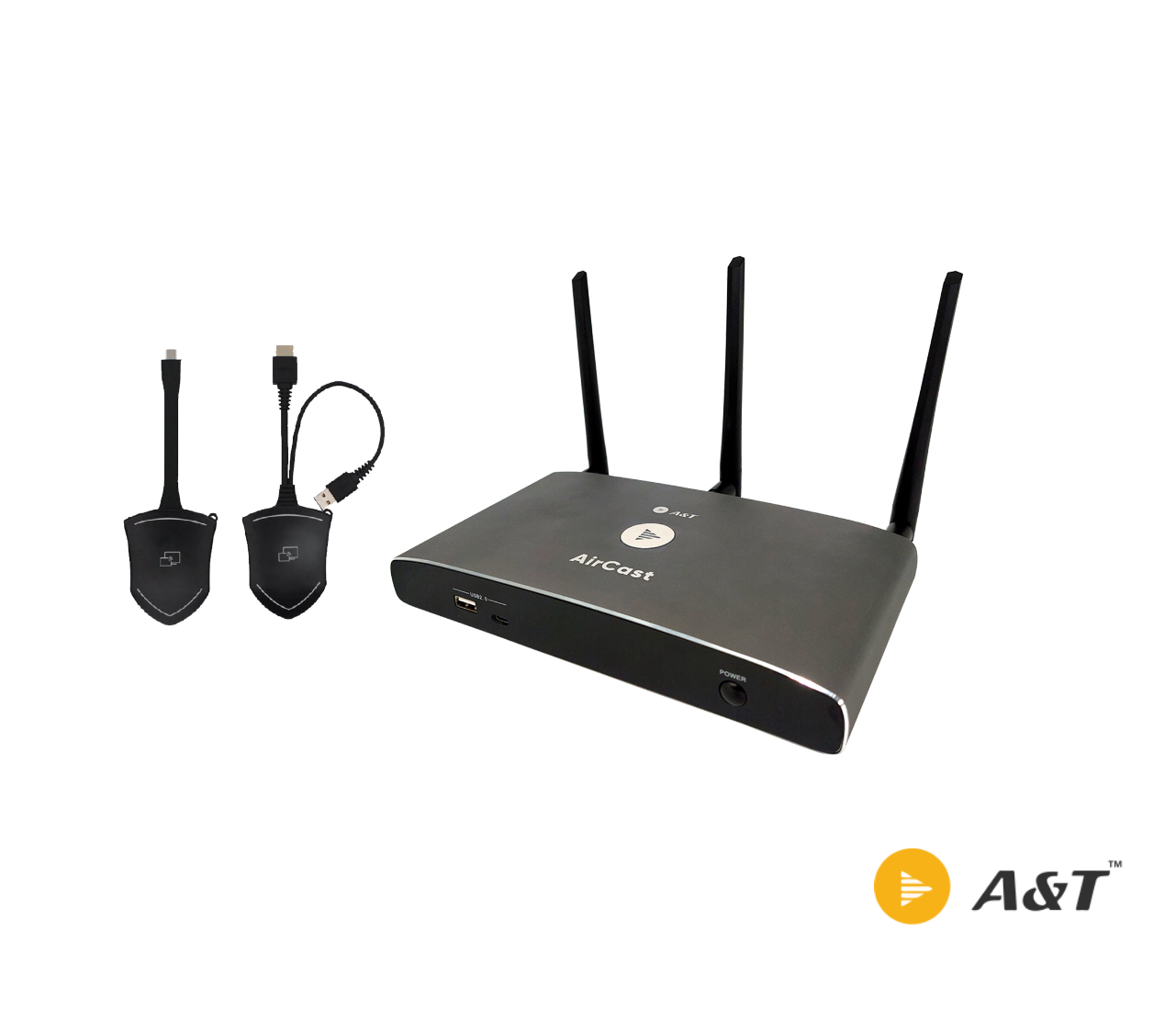

BYOD | BYOM Wireless Collaboration Device

Specification:

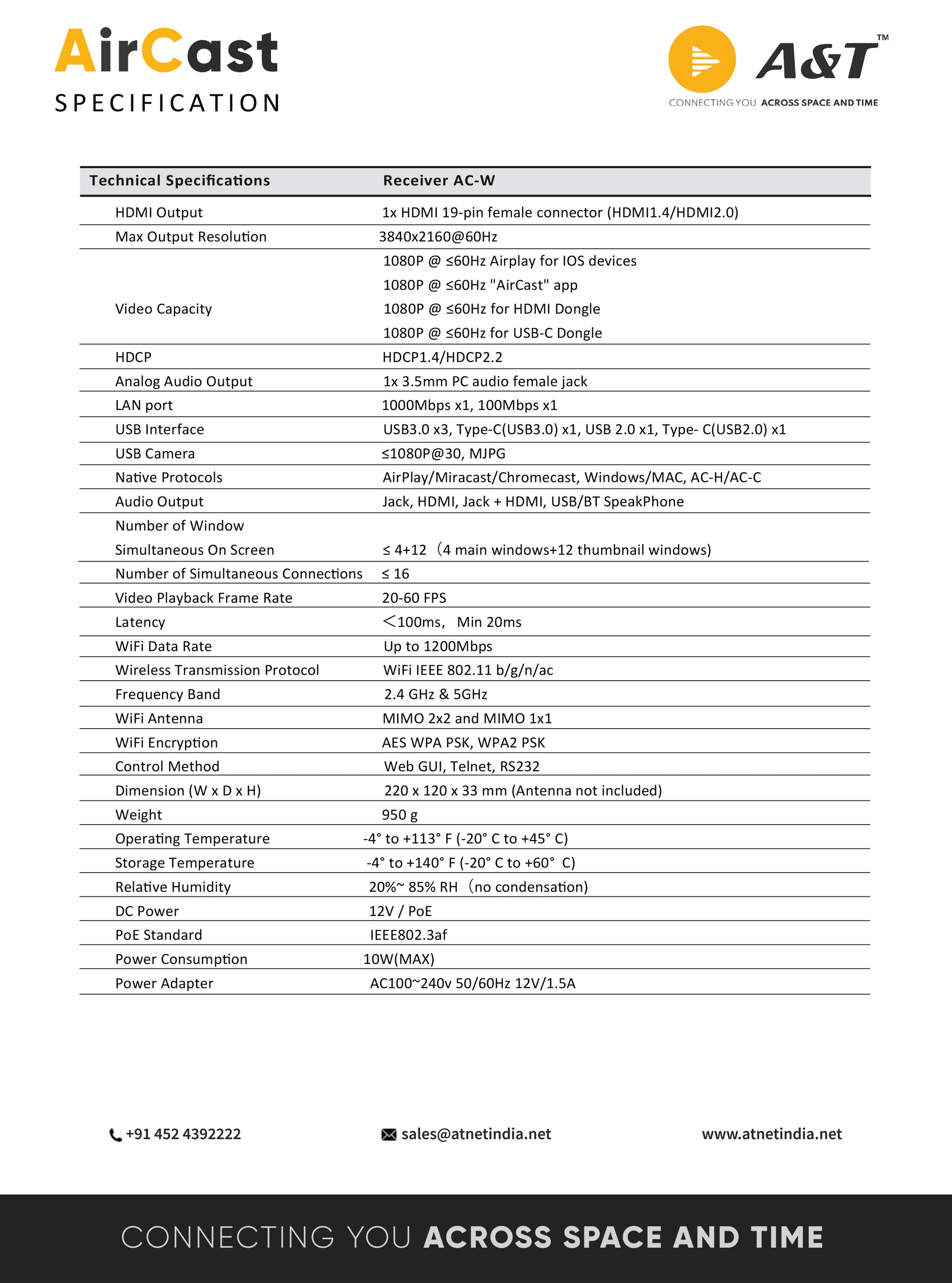

Technical Specifications

HDMI Output: 1x HDMI 19-pin female connector (HDMI1.4/HDMI2.0)

Max Output Resolution:  3840x2160@60Hz

Video Capacity:

• 1080P @ ≤60Hz Airplay for IOS devices
• 1080P @ ≤60Hz "AirCast" app
• 1080P @ ≤60Hz for HDMI Dongle
• 1080P @ ≤60Hz for USB-C Dongle

HDCP:  HDCP1.4/HDCP2.2

Analog Audio Output:  1x 3.5mm PC audio female jack

LAN port:  1000Mbps x1, 100Mbps x1

USB Interface:  USB3.0 x3, Type-C(USB3.0) x1, USB 2.0 x1, Type- C(USB2.0) x1

USB Camera:   ≤1080P@30, MJPG

Native Protocols:  AirPlay/Miracast/Chromecast, Windows/MAC, AC-H/AC-C

Audio Output: Jack, HDMI, Jack + HDMI, USB/BT SpeakPhone

Number of Window Simultaneous On Screen:    ≤ 4+12（4 main windows+12 thumbnail windows)

Number of Simultaneous Connections: ≤ 16

Video Playback Frame Rate: 20-60 FPS

Latency: ＜100ms，Min 20ms

WiFi Data Rate: Up to 1200Mbps

Wireless Transmission Protocol: WiFi IEEE 802.11 b/g/n/ac

Frequency Band: 2.4 GHz & 5GHz

WiFi Antenna: MIMO 2x2 and MIMO 1x1

WiFi Encryption: AES WPA PSK, WPA2 PSK

Control Method: Web GUI, Telnet, RS232

Dimension (W x D x H): 220 x 120 x 33 mm (Antenna not included)

Weight: 950 g

Operating Temperature: -4° to +113° F (-20° C to +45° C)

Storage Temperature: -4° to +140° F (-20° C to +60°  C)

Relative Humidity: 20%~ 85% RH（no condensation)

DC Power: 12V / PoE

PoE Standard: IEEE802.3af

Power Consumption: 10W(MAX)

Power Adapter: AC100~240v 50/60Hz 12V/1.5A

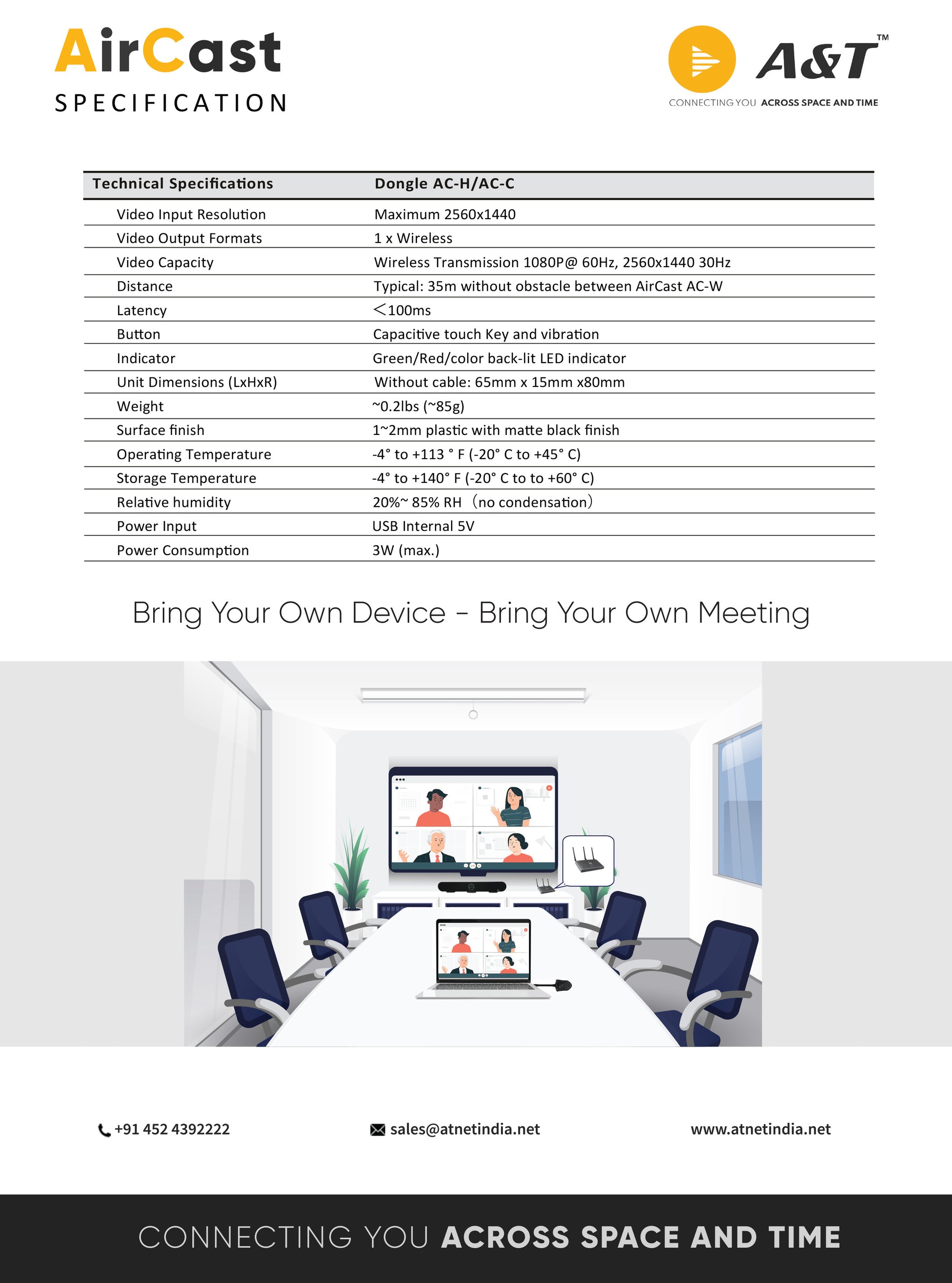

Video Input Resolution: Maximum 2560x1440

Video Output Formats: 1 x Wireless

Video Capacity: Wireless Transmission 1080P@ 60Hz, 2560x1440 30Hz

Distance: Typical: 35m without obstacle between AirCast AC-W

Latency:＜100ms

Button: Capacitive touch Key and vibration

Indicator: Green/Red/color back-lit LED indicator

Unit Dimensions (LxHxR): Without cable: 65mm x 15mm x80mm

Weight: ~0.2lbs (~85g)

Surface finish: 1~2mm plastic with matte black finish.

Operating Temperature: -4° to +113 ° F (-20° C to +45° C)

Storage Temperature: -4° to +140° F (-20° C to to +60° C)

Relative Humidity: 20%~ 85% RH（no condensation)

Power Input: USB Internal 5V

Power Consumption: 3W (max.)
